YQBJ-300X130 Hydraulic Lane Lifting Machine New Condition Metal Material Shoulders Type Railway Parts & Accessories
customers are viewing this product
Product Description
YQBJ-300X130 Hydraulic Lane Lifting Machine New Condition Metal Material Shoulders Type Railway Parts & Accessories

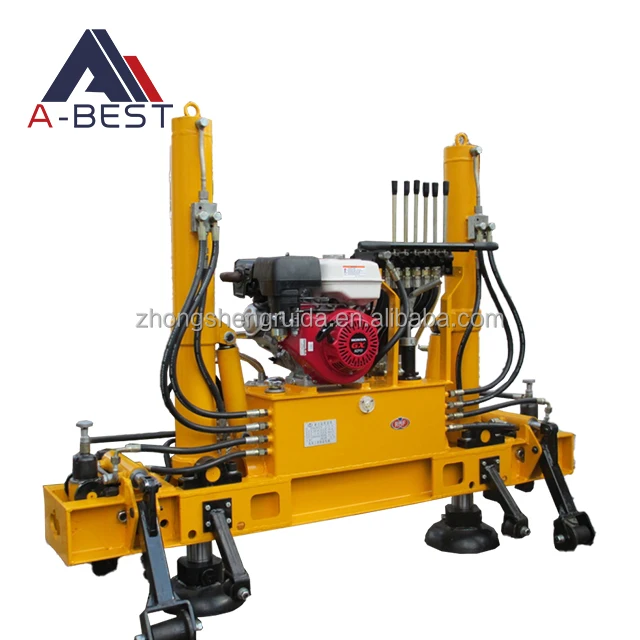

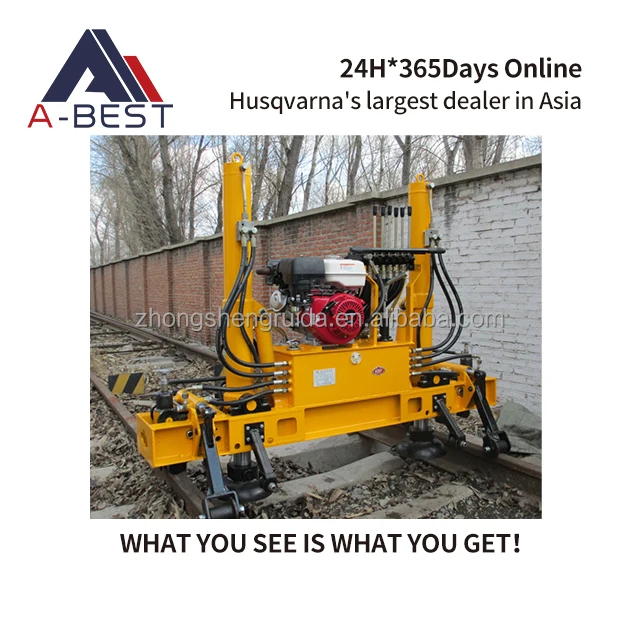

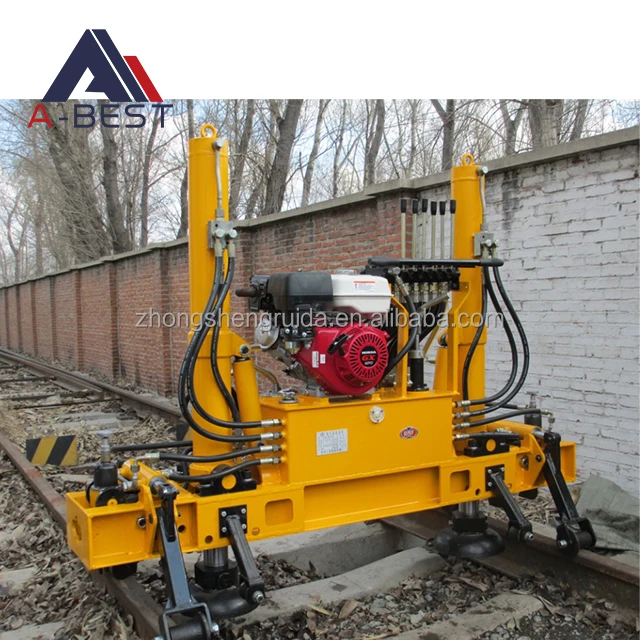

YQBJ-300 × 130 Hydraulic rail lifting and lining machine is suitable for large and medium repairs of
railway lines and general railway line maintenance. The machine is mainly composed of engine, frame,
gear pump, hydraulic transmission system, multi-way reversing operating system, hydraulic lifting
mechanism, hydraulic rail hook, mechanism, walking wheel hydraulic lifting mechanism and other parts.
The machine is fully hydraulically driven except that the on and off lanes require labor, which has the
characteristics of simple structure, labor-saving operation, flexible movement, rapid on and off track, and
convenient maintenance. It is widely used in train blockade and slow-moving section lines, and is an ideal
equipment for realizing railway maintenance mechanization. It has the function of lifting and alignment and
applicable to 43~75kg/m rail. YQBJ-300X130 Hydraulic Lane Lifting Machine New Condition Metal Material Shoulders Type Railway Parts & Accessories
railway lines and general railway line maintenance. The machine is mainly composed of engine, frame,
gear pump, hydraulic transmission system, multi-way reversing operating system, hydraulic lifting
mechanism, hydraulic rail hook, mechanism, walking wheel hydraulic lifting mechanism and other parts.
The machine is fully hydraulically driven except that the on and off lanes require labor, which has the
characteristics of simple structure, labor-saving operation, flexible movement, rapid on and off track, and
convenient maintenance. It is widely used in train blockade and slow-moving section lines, and is an ideal
equipment for realizing railway maintenance mechanization. It has the function of lifting and alignment and
applicable to 43~75kg/m rail. YQBJ-300X130 Hydraulic Lane Lifting Machine New Condition Metal Material Shoulders Type Railway Parts & Accessories
Specification
|
TECHNICAL DATA
|
|
|
|
Product Model:
|
YQBJ-300 × 130
|
|
|
Technical Parameters
|
|
|
|
Petrol engine power
|
Honda GX390,6.6kW,(13HP)
|
|
|
Rated lifting force
|
2×150kN
|
|
|
Rated lining force
|
130kN
|
|
|
Rated lifting capacity
|
≥720mm
|
|
|
Rated lining capacity
|
300mm/time
|
|
|
System pressure
|
16MPa
|
|
|
Dimensions
|
1760×900×1500mm
|
|
|
Weight
|
556kg
|
|
Company Profile
Certifications
Customer Photos
Packing & Delivery
1.Are you a trading company or manufacturer? We are manufacturer, major in portable rail maintenance equipment and measuring instruments for many years. Keeping promise, first-class service, we won many old customers’ trust and satisfaction. 2.How do you ensure the quality of products? We operate a quality management system that complies with ISO9001 certification standards, certified by CE, CRCC. We accept third-party inspection to provide you with the best guarantee. 3.Can you accept OEM? Any kind and colors can be provided according to your requirements. Customers logo is OK to print on product. 4.How about your lead time? Usually 15-25 days. Our spare parts and finished products are available in minimum stock to meet the immediate delivery of small batch orders. 5.What service you can provide? Professional manual, and videos on machine failure analysis, repair, and spare-parts replacement.
